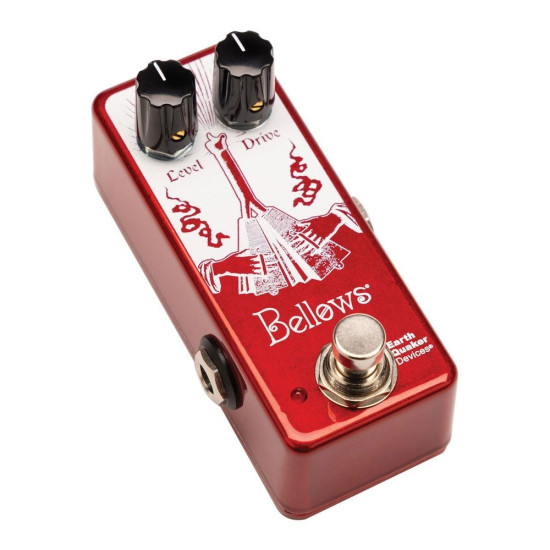

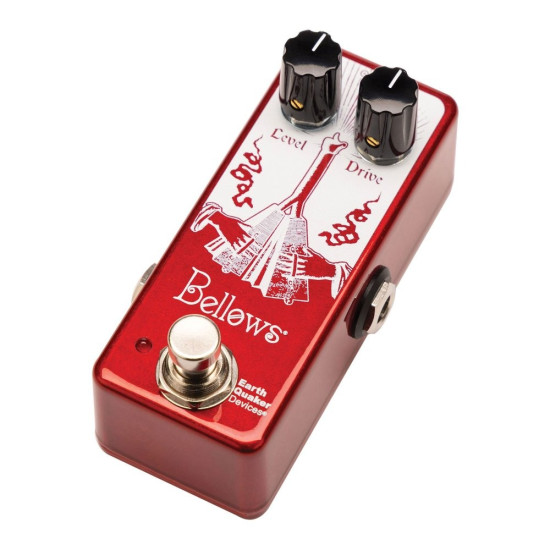

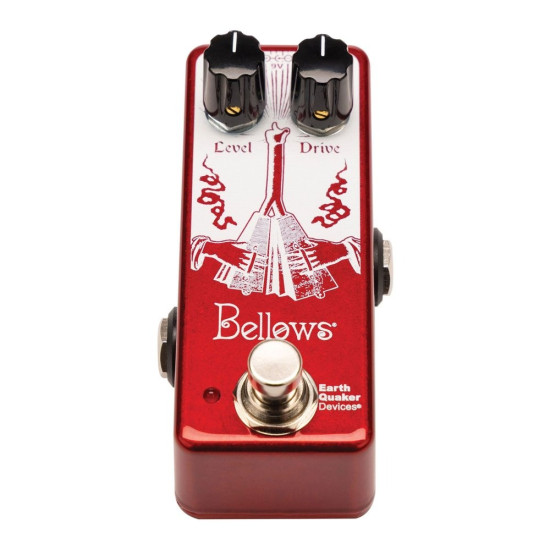

EarthQuaker Devices - Bellow Jr. - Legacy Reissue Fuzz Driver

Bellows is a two-knob wonder imbued with a whole lot of character for such a wee, simple, and unassuming pedal. It straddles the line between amp-like grit and fuzzy saturation to create a remarkably vintage, tweed-type tone.

Similar to the volume control of a “non master” amp, the Drive determines how hard the signal hits the input. At lower drive levels it’s a little wider and grittier. If you can resist the usual urge to dime the Drive, you’ll be rewarded with forcefully mellow, amp-like break up. Slowly bring up the Drive and you’ll eventually end up in blown out fuzz land, having passed a bunch of useful distorted places on your way. It’s pretty much every era of rock n’ roll in a box.

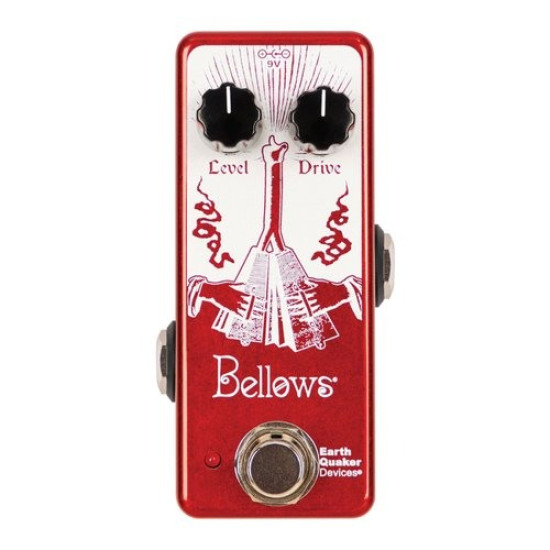

Controls

1. Level: Adjusts the output level by setting the bias voltage of the transistor. A small amount of noise while dialing this in is perfectly normal.

2. Drive: Controls the input gain of the device for different levels of dirt. You’ll find that it is thinner and more clean counterclockwise and thicker with more growl clockwise.

Dimensions: 1.50 × 3.75 x 2.00 in. (38 × 95 × 51 mm) with knobs

Current Draw: 13 mA

Input Impedance: 250 kΩ

Output Impedance: <1 kΩ

Switching: This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

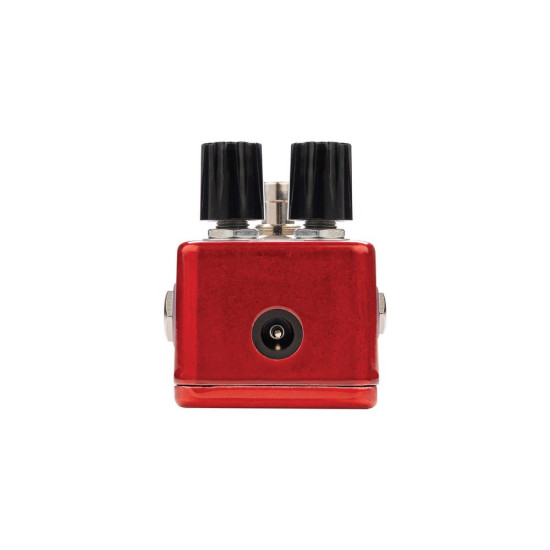

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Artwork: Artwork by Geoffrey Crowe
