Eventide - MicroPitch Delay - Stereo Pitch Shifter + Delay

MicroPitch Delay

Stereo Pitch Shifter + Delay

Savor the secret sauce simmered into countless hit records with the MicroPitch Delay effects pedal. By utilizing subtle pitch shifts to create a rich stereo spread, MicroPitch Delay makes anything you cook up sonically delectable. This pedal is the key ingredient for serving up flavorful tones: Instantly harness soaring leads that jump out of the mix, add distinct lushness to a compelling clean passage and get your fill of vibey modulation that’s sure to sweeten any pot with the push of a button.

Features

• Experience the latest incarnation of an iconic effect that originated with the legendary H910 and H949 Harmonizers, and later popularized with the H3000.
• Dual pitch-shifted delay with fine resolution de-tuning and modulation on tap
• Achieve subtle tone fattening, lush stereo widening, rich detuned delays, thick modulation, and tempo-synced special effects.
• New positive envelope and negative envelope modulation sources
• Five presets loaded at your feet with dozens more available with Eventide Device Manager (EDM) software.
• Dual-action Active Footswitch is latching or momentary.
• Rear panel Guitar/Line Level switch for matching levels with guitar, synths, FX loop or DAW interface
• Map any combination of parameters to an Expression Pedal.
• Use a single Aux switch to engage FLEX which doubles the pitches or a triple Aux switch for easy preset changing (up/down/load).
• MIDI capability over TRS (use with a MIDI to TRS cable or converter box) or USB
• Multiple Bypass options: Buffered, Relay, DSP+FX or Kill dry
• Catch-up mode helps dial in your sound when toggling between presets/parameters
• Eventide Device Manager PC or Mac application for software updates, system settings and creating/saving presets

What’s the Recipe?

What’s the Recipe for the MicroPitch Delay pedal? It’s a unique flavor profile of dual pitch-shifters with fine-resolution de-tuning and modulation combined with delay in a delicious red package. The pedal is the latest incarnation of a legendary effect that originated in the H910 and H949 Harmonizers and later popularized with the H3000. It can be utilized for chorusing and savory repeating delays.

Creative Sonic Design Tool

MicroPitch Delay is effective whether used subtly as a thickening tone-enhancer or dialed to the extremes for special effects. The simplicity of the pedal’s ability to make things sound bigger is what makes it so tasty! With the MicroPitch Delay pedal, you can easily harness the power of this iconic Eventide effect that helped shape musical history.

Specifications

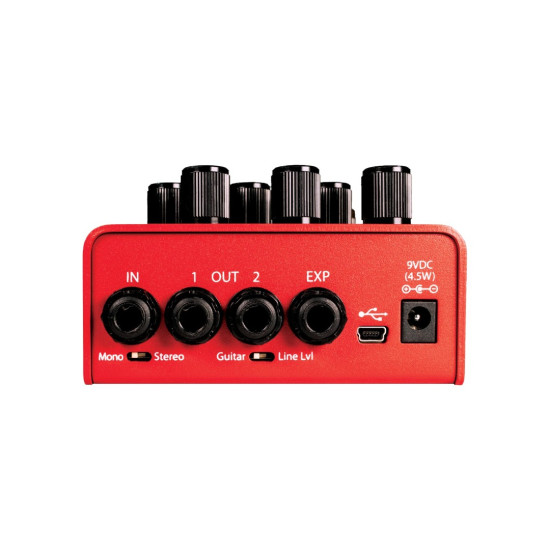

Connectors

Input: 1/4″ TRS / Mono = Tip, Stereo = Tip & Ring

Output 1: 1/4″ TS Mono / Mono Output

Output 2: 1/4″ TS Mono / Stereo Output

EXP: 1/4″ TRS / Expression pedal, Aux Switch or MIDI I/O

Mono/Stereo Switch: Sets Input to Mono (Tip) or Stereo (Tip + Ring)

Guitar/Line Level Switch: Optimizes internal gain structure

Mini USB: Software updates, MIDI I/O

DC Adapter Jack: 5.5mm / 2.1mm plug / Center Negative (-)

Analog I/O

Input Impedance (Inst. Level): 700k ohms Mono, 990k ohms Stereo

Max Input, Guitar: +8dBu

Max Input, Line: +14dBu

Output Impedance: 220 ohms

Recommended Load Impedance: 10k ohms

Specifications

Power: 9V DC @ 300mA / Center Negative (-). Includes universal power supply with US, EU, UK, JP, and AU adapters.

Dimensions (Product): 4″ W x 4.25″ D x 1.68″ H / 102 mm x 108 mm x 43 mm

Weight (Product): 1.06 lb / 0.48 kg

Dimensions (Package): 7.7″ W x 4.75″ D x 2.8″ H / 178 mm x 121 mm x 71 mm

Weight (Package): 1.68 lb / .77 kg
